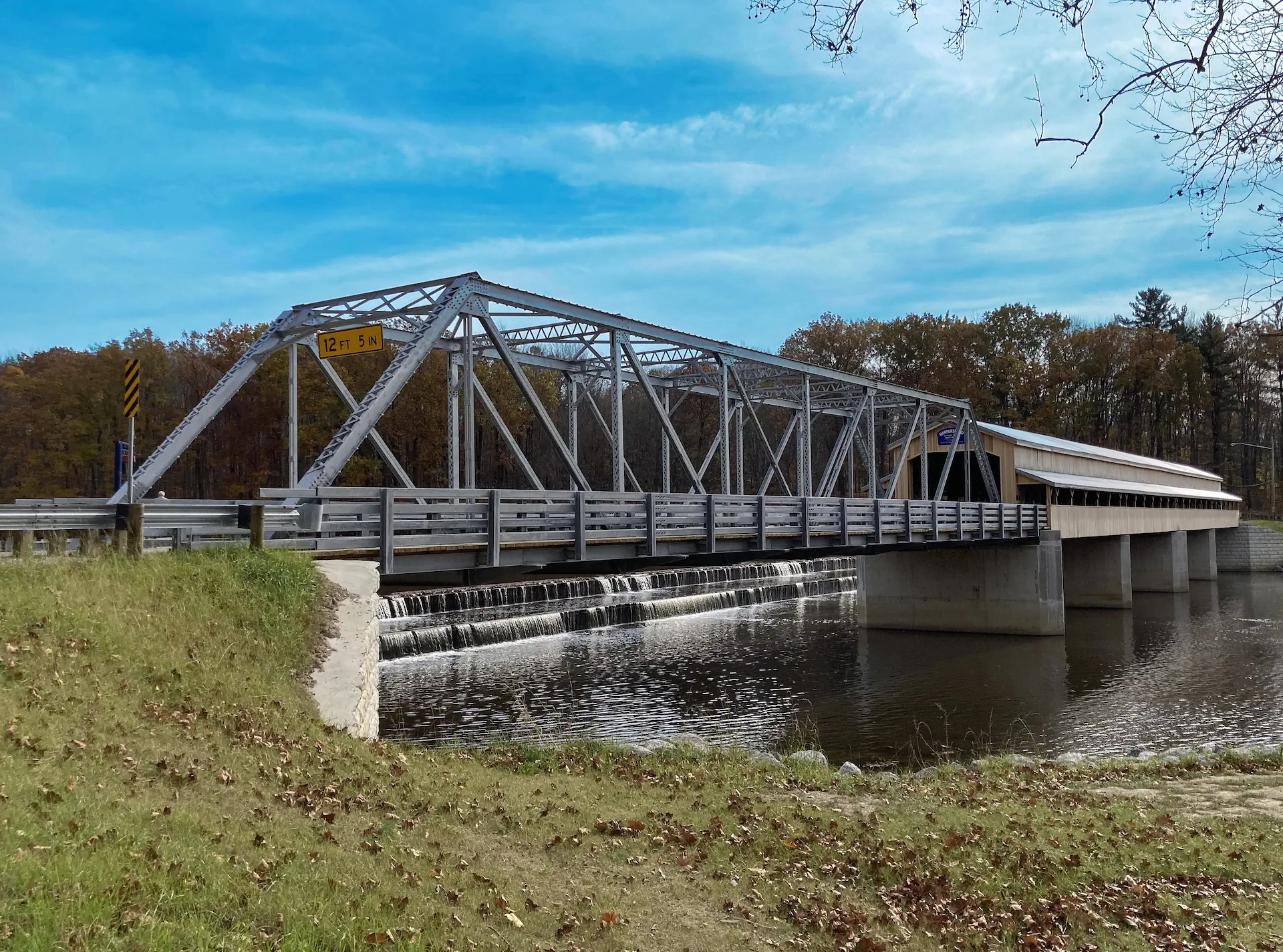

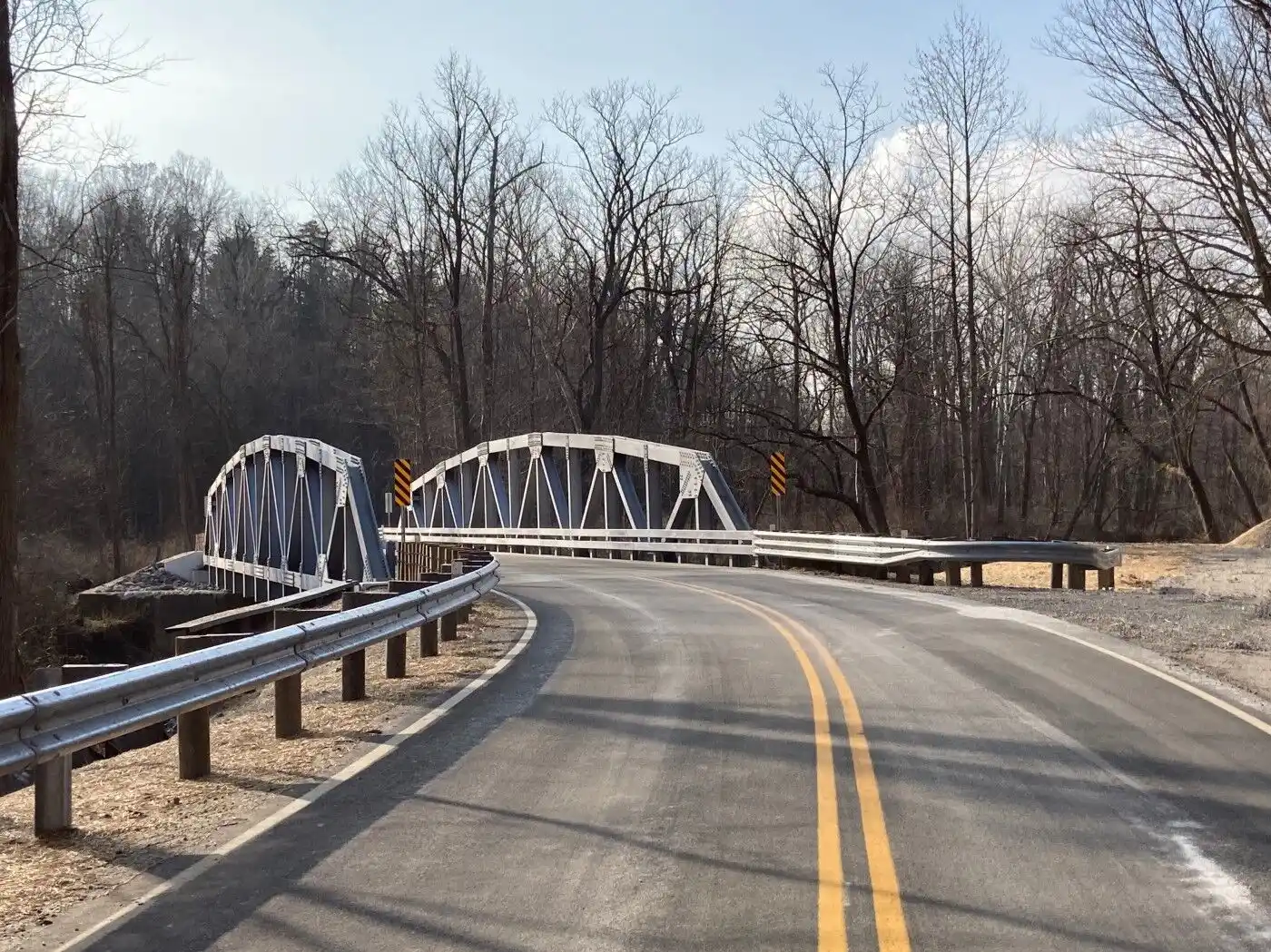

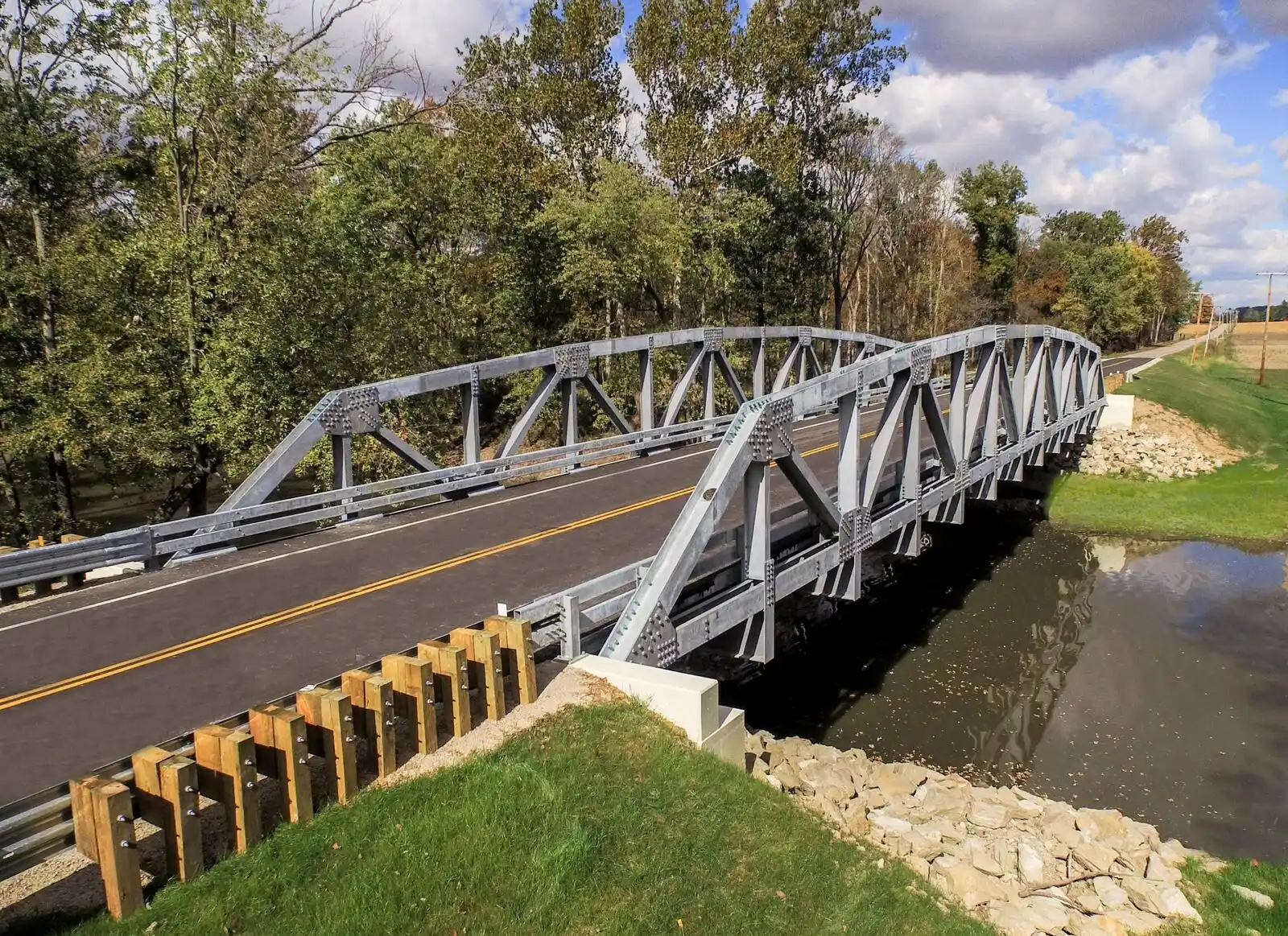

A Warren Truss girder bridge that is formed by a top chord with a polygonal (camelback) shaped geometry. It is an efficient use of steel is a classic choice for rural or industrial settings.

One Lane
Width Range: 12 ft. – 18 ft. / Span Range Max: 200 ft. – 190 ft.

Two Lanes
Width Range: 20 ft. – 34 ft. / Span Range Max: 180 ft. – 160 ft.

Three
Width Range: 35 ft. – 44 ft. / Span Range Max: 160 ft. – 140 ft.
